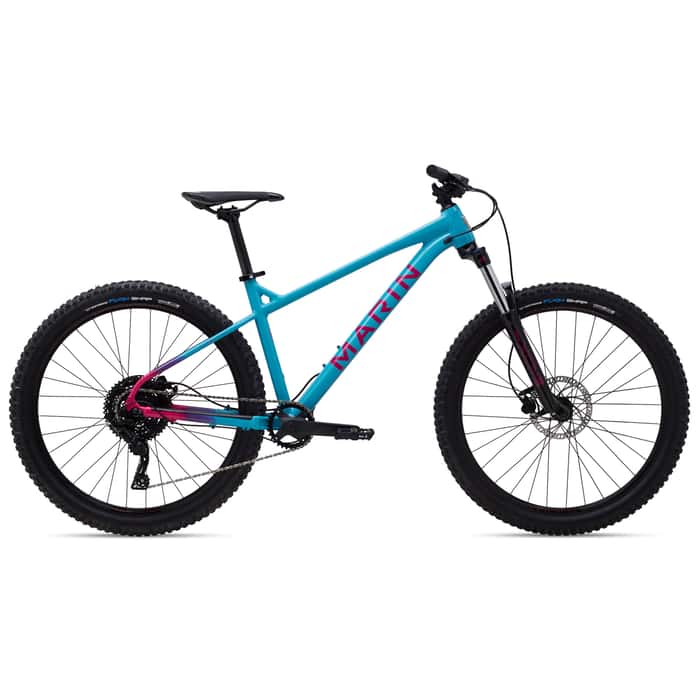

Marin San Quentin 1 27.5 Mountain Bike '22

About the Marin San Quentin 1 27.5 Mountain Bike '22

The Marin San Quentin 1 27.5 Mountain Bike is for the aggressive hardtail trail rider that's looking for a sweet blend of single track performance and sick extended airtime. This bike features a Series 2 aluminum frame that has tapered head tubes, 3D forged dropouts, IS brake mounts and semi-internal cable routing. The San Quentin takes styling cues from the Alcatraz and provides all the beneFits of the DJ style with massive stand over, slick frame tubes, and sexy paint job.

This bike has a slack head tube angle paired with a steep seat tube angle that creates a ride that will launch you uphill with laser like front wheel precision all while rail like descents. The step seat tube angle puts all your weight between wheels to create a balanced rider position that creates impressive climbs and unsurpassed handling on the flats. It's slack front end and short rear center will pull you through descents and corners like it was part of you. The Marin San Quentin 1 27.5 Mountain Bike is the one that will have you feeling connected to the track or trail all day.


Features

  • Series 2 6061 Aluminum, Double Butted Frame
  • SR Suntour XCM32 Boost Fork
  • 120 mm Travel
  • MicroShift Derailleur and Shifters
  • Tektro Brakes
  • Marin Rims
  • Vee Tire Co Tires
  • Marin Mini-Riser Handlebar
  • Marin MTN Grips
  • Marin Speed Concept Saddle
Product Code
77050060040002130

Tech Specs

Frame
Series 2 6061 Aluminum, Double Butted Frame, 141 mm Open Dropout, 73 mm Threaded BB
Fork
SR Suntour XCM32 Boost 15 mm x 110 mm Spacing, 120 mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle, 47 mm Offset
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Bottom Bracket
Sealed Cartridge Bearing, Square Taper
Crankset
MarinForged Alloy, Integrated Steel, 32T, Narrow Wide Chainring, Boost Spacing
Chain
KMC X-9
Cassette
Sunrace, 9-Speed, 11-46T
Rear Derailleur
MicroShift RD-M9195M, 9-Speed, with Clutch
Shifter
MicroShift SL-M9195-R, 1 x 9 with Bearings
Front Hub
Forged Alloy, 110 mm x 15 mm, Disc, 32H
Rear Hub
Forged Alloy, 141 mm Width, Disc, 32H, Shimano Standard Freehub Body
Rims
Marin Double Wall Alloy, 29 mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Tires
Vee Tire Co Flow Snap, 27.5" x 2.6", MPC Compound, Wire Bead
Wheel Size
27.5"
Front Brakes
Tektro M275 Hydraulic Disc Brake, 180 mm Rotor
Rear Brakes
Tektro M275 Hydraulic Disc Brake, 160 mm Rotor
Brake Levers
Tektro M275 Hydraulic Disc
Handlebar
Marin Mini-Riser,6061 Double Butted Aluminum, 780 mm Width, 28 mm Rise, 5° Up, 9° Back
Grips
Marin MTN, Closed End
Saddle
Marin Speed Concept
Seatpost
Marin Alloy, 30.9 mm
Stem
Marin 3D Forged Alloy, 45 mm
Pedals
Nylon Platform
Bike Part Substitution

Due to global supply chain issues, manufacturers may substitute bike parts and/or components that are different from what is shown or described on our product pages. While specifications are subject to change without notice from the manufacturer, we are making updates to bike specifications as we are made aware of them. Please note that changes are typically minor.
