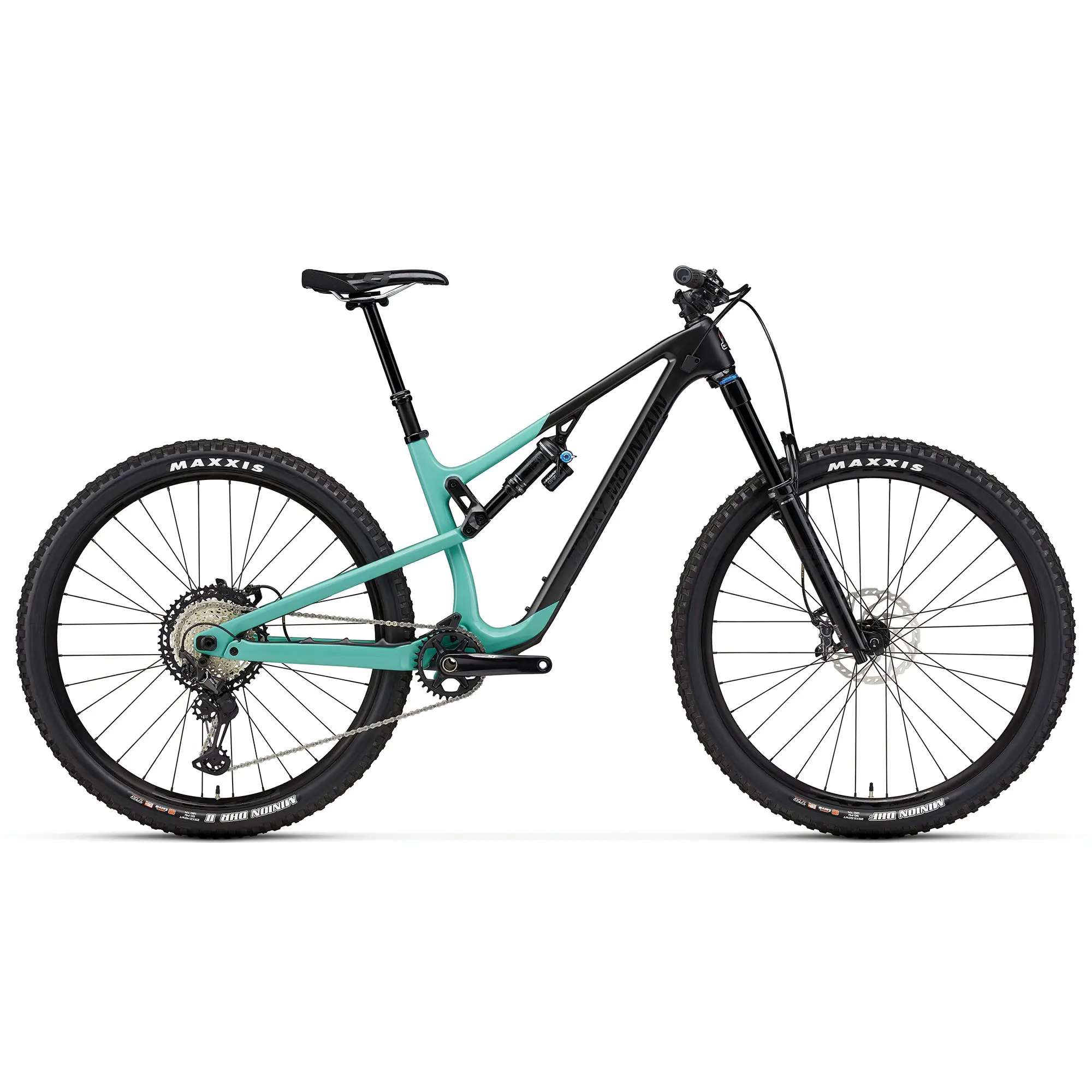

About the Rocky Mountain Instinct Carbon 70 29" Mountain Bikes
The Rocky Mountain Instinct Carbon 70 29" Mountain Bike was designed for colossal rides and wide-open single track. It's a versatile platform that thrives on all brands of trails that will tackle features with ease, efficiency, and responsiveness. Every riders desire to ride faster, harder, and longer is almost universal and the Instinct has had changes that will maintain peak efficiency.It's updated geometry and frame features mean it's versatile and adapts to meet your demands on the trail. The Rocky Mountain Instinct Carbon 70 29" Mountain bike is the go-to choice for riders looking for a bike that does it all, and more.
Features
- SMOOTHWALL™ Carbon Frame
- Fox 36 Float EVOL Fork with 150 mm Travel
- Shimano Drivetrain
- Shimano Brakes
- Race Face AR 30 Rims
- Race Face Turbine R Handle Bar
- W#TB Volt Race Saddle
- Size Specific Tune
- Smoothlink Suspension
- RIDE-9 Adjustment System
- Ergon GE1 EVO Lock On Grips
- Product Code
- 77060065570002108
- SKU
Tech Specs
- Frame
- SMOOTHWALL™ Carbon, Full Sealed Cartridge Bearings, Press Fit BB92, Internal Cable Routing, 2-Bolt ISCG05 Tabs, RIDE-9™ Adjustable Geometry, 2 Position Axle, 140 mm Travel, SMOOTHWALL™ Carbon Rear Triangle
- Fork
- Fox 36 Float EVOL FIT4 Performance Elite Series 150 mm, 27.5 = 37 mm Offset, 29 = 44 mm Offset
- Front Travel
- 150 mm
- Shock
- Fox Float DPX2 Performance Elite, Sealed Bearing Eyelet, 25 mm x 8 mm F Hardware, XS - SM = 190 mm x 45 mm, MD - LG - XL = 210 mm x 52.5 mm
- Rear Travel
- 140 mm
- Headset
- FSA Orbit NO.57E, 36°x45° Bearings, 30.2 mm x 41 mm x 7.1 mm Upper, 40 mm x 51.8 mm x 7.5 mm Lower, 1.5" Crown Race
- Stem
- Rocky Mountain 35 AM, 5° Rise, All Sizes = 40 mm
- Handlebar
- Race Face Turbine R, 780 mm Width, 20 mm Rise, 8° Backsweep, 4° Upsweep, 35 mm Clamp
- Grips
- Ergon GE1 EVO Lock On
- Brakes
- Shimano XT Trail 4 Piston, Metallic Pads, RT66 180 mm F Rotor, RT66 180 mm R Rotor
- Shifters
- Shimano XT
- Rear Derailleur
- Shimano XT
- Cranks & Chainrings
- Shimano XT, 27.5 = 34T, 29 = 32T, 24 mm Spindle, 170 mm Crank Length
- Bottom Bracket
- Shimano SM-BB71
- Cassette
- Shimano XT 10-51T
- Chain
- Shimano M8100
- Front Hub
- Rocky Mountain Sealed Boost 15 mm
- Rear Hub
- DT Swiss 370 Boost 148 mm, RMB Axle, 163 mm x 12 mm x 1.5 mm
- Spokes
- DT Swiss Competition 2.0/1.8/2.0
- Rims
- Race Face AR 30, Tubeless Ready - Tape, Valves Incl., 32H
- Front Tires
- Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
- Rear Tires
- Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
- Seat Post
- Race Face Turbine R (by Fox) Dropper 30.9 mm, XS - SM = 125 mm, MD = 150 mm, LG - XL = 175 mm
- Saddle
- WTB Volt Race, Cromoly Rails, 142 mm Width
- Weight
- 14.24 kg (31.3 lbs) Inc. Inner Tubes
