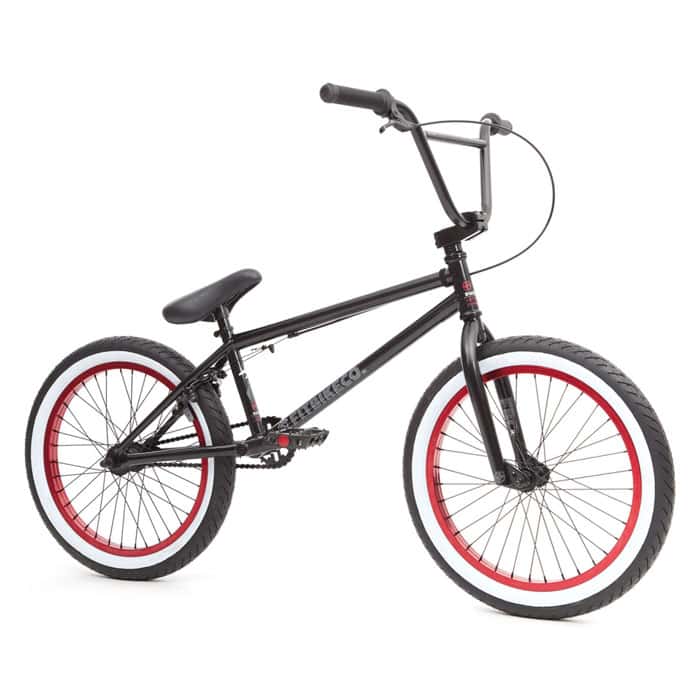

About the FIT Dugan 1 20.75 TT BMX Freestyle Bike '16
The FIT Dugan 1 BMX Freestyle Bike is a hot rod Tom Dugan inspired level 1 complete with a 20.75" top tube and sealed cassette 25/9 with (LSD) left side drive. The geometry has been revved up on thisalready stiff and strong frame. A steeper head tube, shorter rear end and a lower bottom bracket areexactly what was needed to help Dugan blast off to new heights!
Features
- Chromoly Steel Frame
- 20.75" Top Tube
- 25/9 Left Side Drive
- Indented CrMo 170mm 8 Spline Cranks
- Revenge SW1 Rims
- 2 Piece 8.7" X 29" Handlebar
- Product Code
- 7710065641620
- SKU
Tech Specs
- Frame
- CrMo TT, DT And ST
- Top Tube
- 20.75"
- Headtube
- Integrated
- BB Shell
- Mid
- Drop Outs
- 14mm
- Brake Mounting
- 990 Mounts
- Seat Clamp
- Integrated
- Fork
- CrMo Steerer Tube, Tapered Legs, 3/8" Drop Outs
- Handlebar
- 2 Piece 8.7" X 29"
- Stem
- Top Load
- Grips
- SAVAGE
- Headset
- Integrated 45°/45° Sealed 41.8mm
- Rear Brake
- Alloy 990 U-Brake, Soft Compound Pads
- Brake Lever
- Alloy Hinged
- Brake Cable
- Slic
- Seat
- Padded Vinyl
- Seat Post
- Integrated Alloy
- Front/Rear
- 25/9 Left Side Drive
- Cranks
- Indented Crmo 170mm 8 Spline
- Bottom Bracket
- Sealed Bearing Mid
- Sprocket
- CrMo Key 25T
- Pedals
- Odyssey Twisted PC
- Chain
- KMC Z410H
- Front Hub
- Alloy Sealed 3/8" Axle
- Front Rim
- Revenge SW1 36H
- Front Tire
- 2.4 T/A 65 PSI
- Rear Hub
- Sealed Cassette 14mm/1pc Driver
- Rear Rim
- Revenge SW1 36H
- Rear Tire
- 2.4 T/A 65 PSI
- Spokes
- 14g
- Nipples
- Brass
- Hub Guard
- N/A
- Pegs
- N/A
- Weight
- 26 Lbs / 11.79 Kg
- Head Angle Geometry
- 75.5°
- Seat Angle Geometry
- 71°
- Chainstay Geometry
- 13.11"
- BB Height Geometry
- 11.6"
- Standover Geometry
- 8.6"
