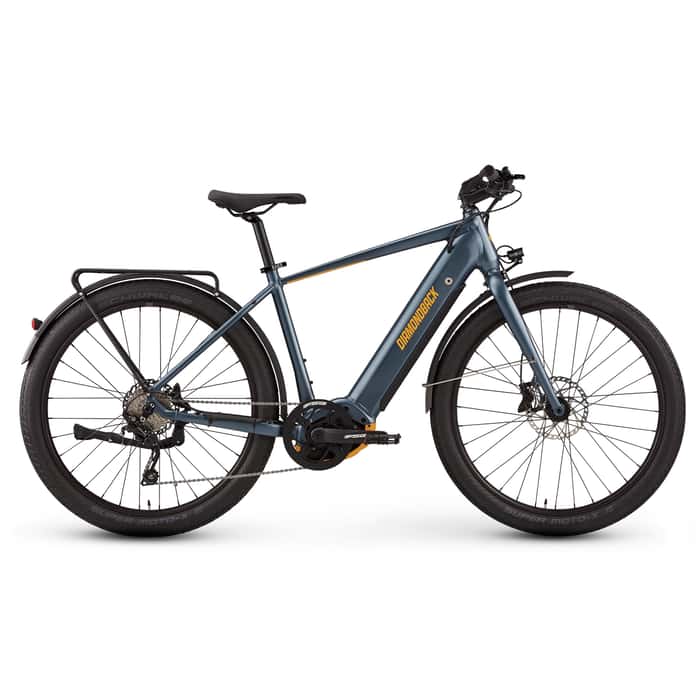

Diamondback Union 2 Electric Bike '22

About the Diamondback Union 2 Electric Bike '22

The Diamondback Union 2 Electric Bike is fully loaded to get things done. Built on a sleek aluminum frame with internal cable routing, this class 3 eBike is powered by a Bosch Performance Line Speed motor and a Powertube 500Wh battery, ensuring you get to point A to point B effortlessly. The Bosch Kiox on-board computer provides ride data at your fingertips via a handlebar remote and easy-to-read color display. The Kiox is compatible with Bluetooth heart-rate monitors for the ultimate smart eBike experience. Enjoy a 10-speed Shimano drivetrain that fine-tunes your pedaling, while Shimano hydraulic disc brakes keep your speed under control. Wide tires on 27.5-inch wheels take the sting out of rough pavement and with built-in lights, an integrated rack, and fenders, the Diamondback Union 2 Electric Bike lets you cut through city traffic with ease and confidence.


Features

  • Aluminum Alloy Frame
  • Formed 6061 T6 Fork
  • Shimano 10-Speed Drivetrain
  • Shimano MT420 Disc Brakes
  • Schwalbe Super Moto 27.5" Tires
  • Aluminum Alloy Handlebar
  • Ergo Comfort Control Grips
  • Custom Ergo Performance Saddle
  • Bosch Battery and Motor
  • Aluminum Structural Extrusion Fenders
  • Integrated Rear Rack
  • Lezyne Headlight and Taillight
  • Rear Mounted Kickstand
Product Code
77390020490002210

Tech Specs

Frame
Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
Fork
Formed 6061 T6, Integrated Crown, Disc Brake, Thru Axle
Headset
Integrated, Sealed Bearing
Cranks
FSA Forged Aluminum for Bosch System
Sprocket
FSA Forged Spider, 42 Tooth with Chainguard, Steel
Rear Derailleur
Shimano Deore M610, SGS
Shifter
Shimano Deore SL-M6000, 10 Speed
Cogset
Shimano, 11-32 tooth, 10 Speed
Chain
KMC x10e EPT, Ebike Specific
Front Hub
Formula, Sealed Bearing, Thru Axle
Rear Hub
Formula, Sealed Bearing, Thru Axle
Spokes
Black with Silver Nipples
Rims
Aluminum 27.5", Black Anodized, 25 mm ID, Disc Specific, 32 Hole
Tires
27.5" x 2.4" Schwalbe Super Moto
Brake Levers
Shimano MT420, 2 Finger Lever
Brakes
Shimano MT420, 4 Piston Front 180 mm Rotor/2 Piston Rear 160 mm Rotor
Pedals
Shoe Friendly Urban Design, Resin Body
Handlebar
Aluminum Alloy
Grips
Ergo Comfort Control
Stem
Aluminum Alloy 3d Forged
Seat
Custom Ergo Performance
Seatpost
Aluminum Alloy Forged Head, 350 mm
Battery
Bosch PowerTube 500
Charger
Bosch 4A
Motor
Bosch Performance Line Speed, 85Nm Torque, 28 mph
Display
Bosch Kiox
Range Estimate
35 mi/56 km to 65 mi/104 km
Bike Part Substitution

Due to global supply chain issues, manufacturers may substitute bike parts and/or components that are different from what is shown or described on our product pages. While specifications are subject to change without notice from the manufacturer, we are making updates to bike specifications as we are made aware of them. Please note that changes are typically minor.
