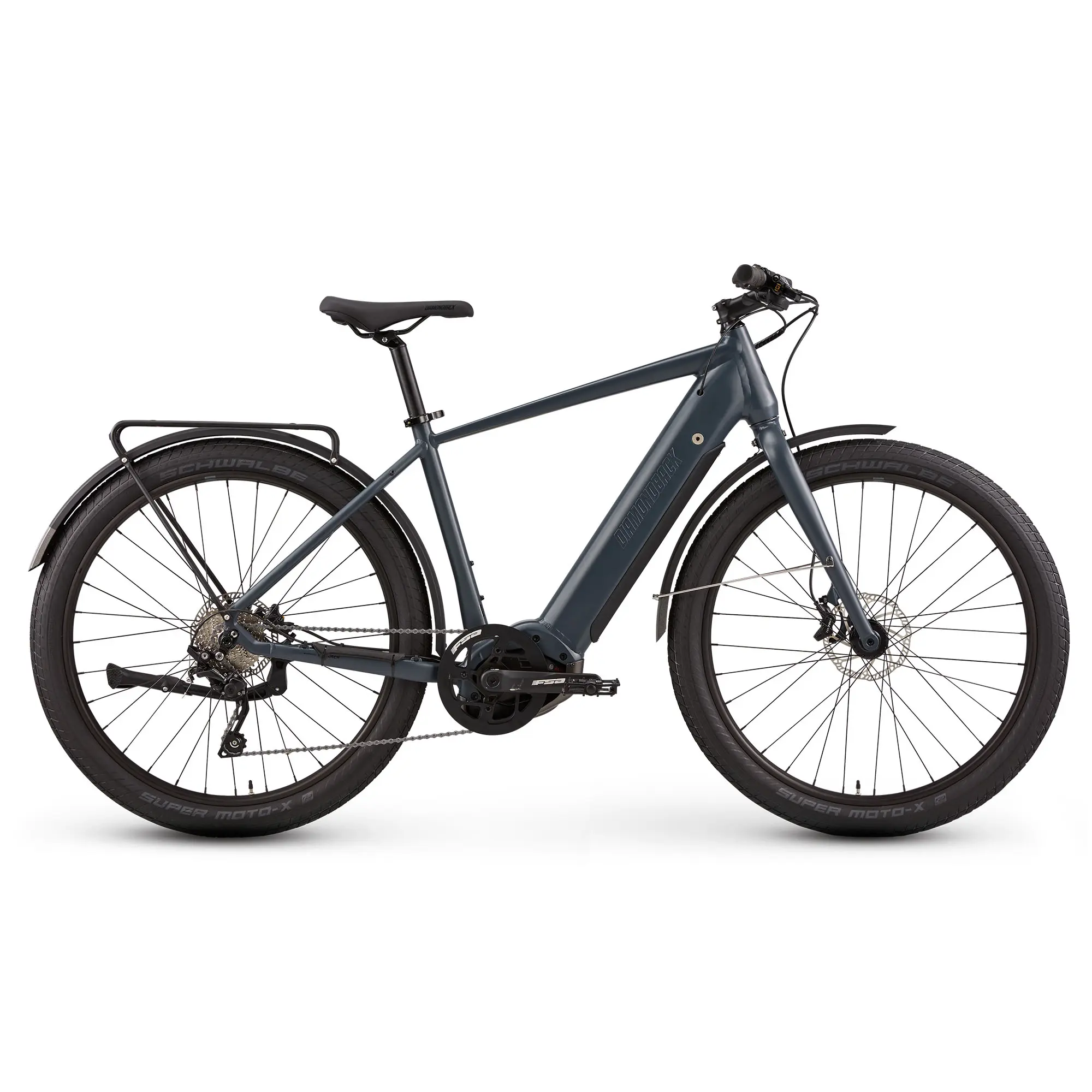

About the Diamondback Union 1 Electric Bike

The Diamondback Union 1 Electric Bike is perfect for riding around town to grab lunch with friends or knocking errands off your list, this eBike gets things done. Built on a sleek aluminum frame with internal cable routing, this eBike is powered by a Bosch Performance Line Speed motor and a powertube integrated 400Wh battery. The Bosch Purion on-board computer lets you focus on the important things with a minimalist design but the data you need at the touch of a button. Enjoy a 10-speed Shimano drivetrain that fine-tunes your pedaling, while Tektro hydraulic disc brakes keep your speed under control. Featuring wide tires on 27.5" wheels take the sting out of rough pavement. With an integrated rack, and fenders, the Diamondback Union 1 Electric lets you cut through city traffic with ease and confidence.

Features

Aluminum Frame Formed 6061 T6 Fork Shimano 10-Speed Drivetrain Tektro M735 Disc Brakes Schwalbe Super Moto 27.5" Tires Aluminum Alloy 3D Forged Handlebar Ergo Comfort Control Grips Bosch Battery and Motor Custom Ergo Performance Saddle Aluminum Structural Extrusion Fenders Integrated Rear Rack Rear Mounted Kickstand
Product Code
77390020490002212
Product Code: 77390020490002212

Tech Specs

Frame: Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery Fork: Formed 6061 T6, Integrated Crown, Disc Brake, Thru Axle Headset: Integrated, Sealed Bearing Cranks: FSA Forged Aluminum for Bosch System Sprocket: FSA Forged Spider, 42 Tooth with Chainguard, Steel Rear Derailleur: Shimano Deore M610, SGS Shifter: Shimano Deore SL-M6000, 10 Speed Cogset: Shimano, 11-32 tooth, 10 Speed Chain: KMC x10e EPT, Ebike Specific Front Hub: Formula, Sealed Bearing, Thru Axle Rear Hub: Formula, Sealed Bearing, Thru Axle Spokes: Black with Silver Nipples Rims: Aluminum 27.5", Black Annodized, 25 mm ID, Disc Specific, 32 Hole Tires: 27.5" x 2.4" Schwalbe Super Moto Brake Levers: Tektro M735, 2 Finger Lever Brakes: Tektro M735, 4 Piston Front 180 mm Rotor, 2 Piston Rear 160 mm Rotor Pedals: Shoe Friendly Urban Design, Resin Body Handlebar: Aluminum Alloy 3D Forged Grips: Ergo Comfort Control Stem: Aluminum Alloy 3D Forged Seat: Custom Ergo Performance Seatpost: Aluminum Forged Head, 350 mm Battery: Bosch PowerTube 400 Charger: Bosch 4A Motor: Bosch Performance Line Speed, 85Nm Torque, 28 mph Display: Bosch Purion Range Estimate: 35 mi/56 km to 55 mi/89 km

Ratings & Reviews

Questions & Answers

Diamondback

Diamondback Union 1 Electric Bike

$2,449.83 $3,500.00 30% Off
