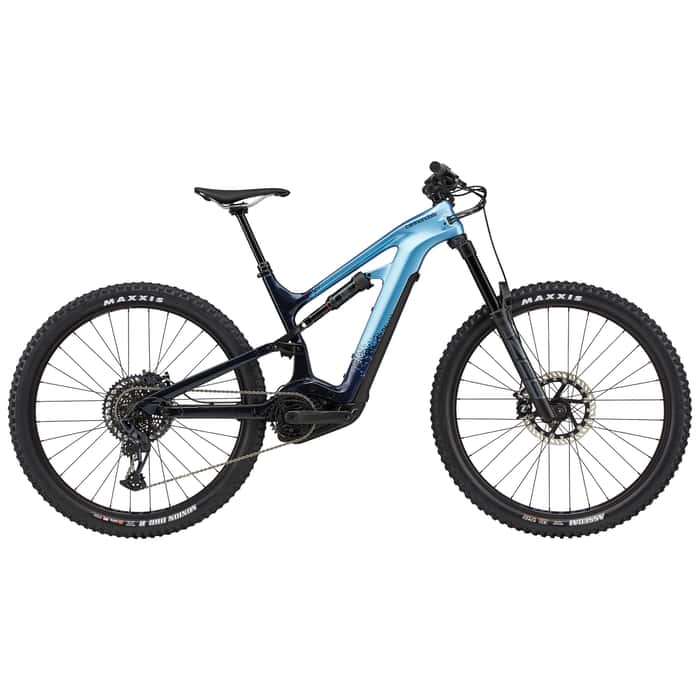

About the Cannondale Moterra Neo Carbon 2 Electric Bike '22
The Cannondale Moterra Neo Carbon 2 Electric Bike is impressively precise and uncommonly agile. Its low center of gravity, modern geometry and short chainstays puts its handling into a class of its own. Cleanly integrated into its brawny carbon frame is Bosch's powerful new Performance CX drive unit and long-lasting PowerTube battery that gives you the power and range to ride anything, anywhere. This bike's Proportional Response system is designed to address the fact that riders come in all sizes. This system lets you fine-tune the suspension layout by size so that every rider gets their optimal traction, suppleness, and control. The Moterra is built with a light and tough BallisTec Carbon frame that prioritizes durability over gram-counting so confidence, as well as a lifetime warranty, is built-in. Shock Linkage is a key part of the Proportional Response suspension design. Each frame size gets its own custom shock links and pivot location to provide you with that "made for you" suspension feel. The Cannondale Moterra Neo Carbon 2 Electric Bike is totally boundless.
Features
- Proportional Response Tuned Carbon Frame
- New RockShox Zeb Select 160 mm Fork
- New SRAM GX/NX 12-Speed Shifting
- SRAM Guide RE 4-Piston Brakes
- Bosch Performance Line CX Drive Unit
- 625 Wh Battery
- 102 km (63 mi) Range
- Product Code
- 77390052390002140
- SKU
Tech Specs
- Frame
- 160 mm Travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, Removable Downtube Battery, Alloy Ski Plate, Ai Offset Drivetrain, Internal Cable Routing, 148 mm x 12 mm Thru-Axle, Post Mount Brake, Tapered Headtube
- Fork
- RockShox Zeb Select, Charger RC, 160 mm, DebonAir, 15 mm x 110 mm, 51 mm Offset
- Headset
- Integrated Sealed Bearing, Tapered
- Rear Shock
- RockShox Deluxe Select R, DebonAir
- Chain
- SRAM NX Eagle, 12-Speed
- Crank
- FSA Bosch E-Bike with Custom Ai Offset, 160 mm, 34T
- Rear Cogs
- SRAM XG-1275 Eagle, 10-52, 12-Speed
- Rear Derailleur
- SRAM GX Eagle
- Shifters
- SRAM NX Eagle, Single Click, 12-Speed
- Front Hub
- Formula 15 mm x 110 mm
- Front Tire
- Maxxis Assegai, 27.5"/29" x 2.6" Dual Compound, EXO, Tubeless Ready
- Rear Hub
- SRAM MTH 700, 12 mm x 148 mm, XD Driver
- Rear Tire
- Maxxis DHR II, 27.5" / 29" x 2.6", 3C, EXO+, Tubeless Ready
- Rims
- WTB ST i29 TCS, 32h, Tubeless Ready
- Spokes
- DT Swiss Champion
- Tire Size
- 2.6"
- Front Tires
- Maxxis Assegai, 27.5" / 29" x 2.6", Dual Compound, EXO, Tubeless Ready
- Rear Tires
- Maxxis DHR II, 27.5" / 29" x 2.6", 3C, EXO+, Tubeless Ready
- Wheel Size
- 29"
- Brake Levers
- Magura MT5 Trail HC Hydraulic Disc
- Brakes
- Magura MT5 4-Piston Hydraulic Disc, Magura MDR-P 220 mm / 203 mm, 6-Bolt Rotors
- Grips
- Fabric FunGuy
- Handlebar
- Cannondale 3 Rise, 6061 Alloy, 15 mm Rise, 8° Sweep, 4° Rise, 780 mm
- Saddle
- Fabric Scoop Shallow Sport, Steel Rails
- Seatpost
- Cannondale DownLow Dropper, Internal Routing, 31.6 mm, 100 mm (S), 125 mm (M), 150 mm (L/XL)
- Stem
- Cannondale 1, 3D Forged 6061 Alloy, 1-18/", 31.8 mm, 7°
- E-System Drive Unit
- Bosch Performance Line CX 250 W
- E-System Battery
- Bosch PowerTube 625 Wh
- E-System Charger
- Bosch 4 A
- E-System Display
- Bosch Purion
- Extras
- Preinstalled Light Cables
